Intensive Mixer For Iron Ore

Intensive Mixer for Iron Ore

YECHUANG MT intensive mixers for iron ore are widely used in iron ore pellet field.With it’s unique working principles and over-whelming prior mixing efficiency,the homogeneity of mixing could largely reduce bentonite consumption,increase the green ball strength and cut down the returning dosage.By using YECHUANG MT intensive mixers,bentonite consumption can even lower to 0.6~0.8%.The combination of weighing sensors and hydraulic driving discharge door can ensure the same time and same homogeneity of the mixing materials in the mixing pan,which guarantees the quality uniformity of the finished products.

The unique structure and advanced working principles

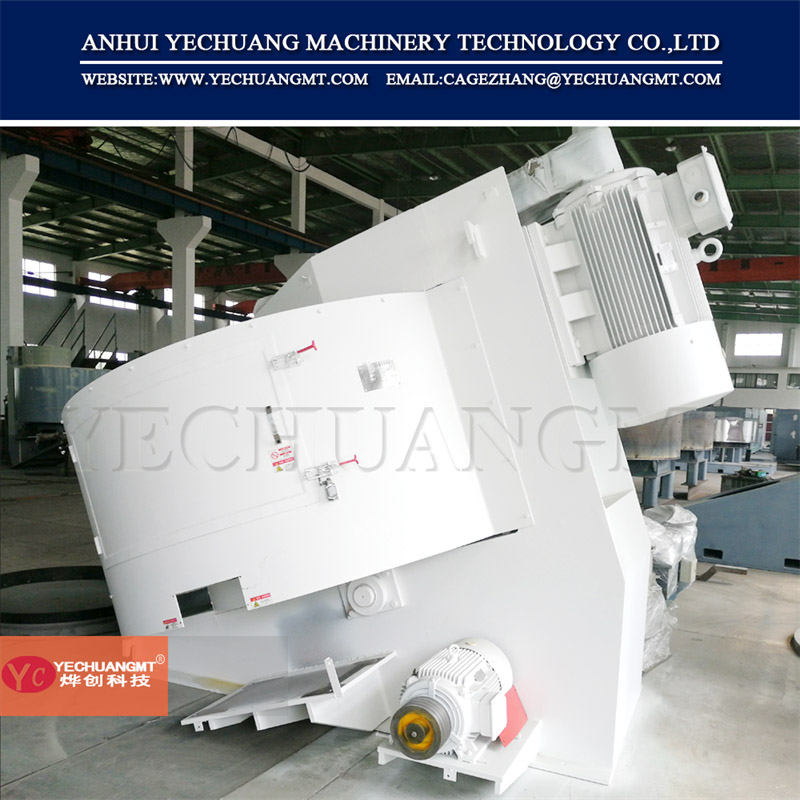

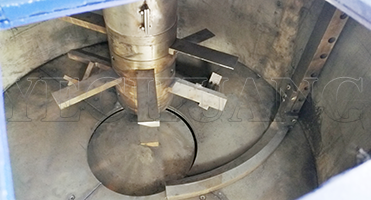

With unique outline structure of 30° inclined angle mixing bowl, mixing pan in clockwise rotation plus high speed rotating three-dimensional mixing tools in anticlockwise, our intensive mixers are adopted with world-leading mixing principles:

• When mixing under the strong mechanical shearing force , the inclined rotating mixing bowl brings the material to the top, rolling of granules dropping under gravity and peeled off by the multi-purpose scraper, which primely realize the vertical mixing.

• The mixing tool can run variably, slow to fast for mixing ,granulating,increase of rolling energy .(i.e. the input of power into the mix can thus be controlled specifically,thus the granule sizes can be controlled accordingly)

• The separation between material move and mixing process allows the speed of the mixing tool variable within wide limits.

• The material of mixing bowl contacted with materials could all be SS 316 or SS304 , to prevent it from corrosion and to extend the lifespan of mixing bowl.

This mixing principle enables:

• The mixing tool can be run variably, at low or high speed

• The input of power into the mix can thus be controlled specifically

• High tool speeds allow e. g. dusts and sludges to be blended to granules, without material caking at the mixing tool

• Medium tool speeds allow high-quality mixtures to be produced

• Low tool speeds allow granules to be gently mixed or coated with additional substances

• One and the same mixer is suitable for mixing, granulating, coating, kneading

Further Advantages:

• The sintering quality increases: higher strengthts, higher permeability

• Cost advantages: less coke requirement, the capacity of the sintering system increases

• Less binders are necessary if ore fines are treated

• Processing ore fines, replacement of wear parts is required not before a system‘s running time of 9 months

• Distinctly fewer repairs due to wear compared to mixers

• Significantly higher availability compared to cylindrical mixers

PRODUCT DETAILS

	Part Name:Mixing Bowl Brand: YECHUANGMT Original: China(mainland) Bottom,cover and side walls with smooth finished surfaces for easy cleaning.Individually designed to charge and discharge according to the product parameters and the conditions of installation.
Part Name:Lubrication Oil Pump Brand: Tilorms Original: China(Taiwan) Applying Tilorms model RF-3 lubrication control system(made in Taiwan),monitoring the hydraulic pump and reducer oil temperature,oil level real-timely.

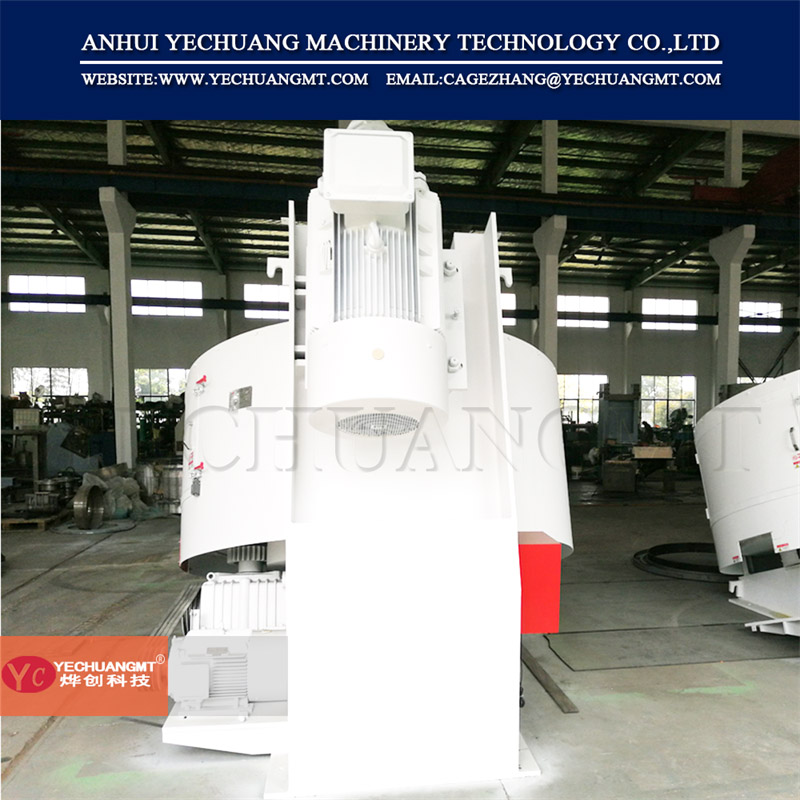

	Part Name:Electric Motor Brand: Siemens Beide Original: Sino-Germany Joint Venture The mixing rotor driving motor is at the back top of the mixer.Power requirement,speed and the type of power transmission are chosen in accordance with the particular application.
Part Name:Hydraulic Pressure Pump Station Brand: Kompass Original: China(Taiwan) We use Taiwan Kompass hydraulic pressure pump station to serve the oil cylinder.Normally, since the factors of safety on shipment,the oil will be empty when delivery.

PRODUCT FEATURES

• The maximum uniformity of material mixing in minimum time.

• Dry mixing: Distinctly fewer repairs due to wear compared to cylindrical mixers

• Mixing result and mixing quality remain unchanged even if only partial quantities are mixed, down to 30% of the nominal capacity

• Less structural maintenance with high energy saving

• Convenient maintenance with super long service life

• High effective volume,small working area,economical construction cost

• Continuous or batch-wise operation both available

• Since there is only one mixing tool,easier to clean

MAIN PARAMETERS

Innovative Design Respectively,Applied to All Industries

Ceramics

Refractories

Fertilizers

Carbon

Abrasives

Welding Materials

Animal Feeds
