SANY Concrete Mixer Wear Parts
1.Supply Sany Concrete Mixer Wear Parts
Model:JS500/JS1000/JS1500/JS2000A/JS2000D/JS3000A/JS2000CK/JS3000F/JS3000D/JS4500/HZS120E/HZS180A etc.
2.Material:(Extra)High Chrome,Nodular Cast Iron,Casting Steel,45# steel
3.Professional Perfomance Mixer Wear Parts Supplier
4.LFC Process
Sany Concrete Mixer Wear Parts
Specifications
1.Supply Sany Concrete Mixer Wear Parts
Model:JS500/JS1000/JS1500/JS2000A/JS2000D/JS3000A/JS2000CK/JS3000F/JS3000D/JS4500/HZS120E/HZS180A etc.
2.Material:(Extra)High Chrome,Nodular Cast Iron,Casting Steel,45# steel
3.Professional Perfomance Mixer Wear Parts Supplier
4.LFC Process
Business Ability and Scope
Material:Ductile casting iron,gray cast iron,stainless steel,carbon steel,low alloy steel,high alloy steel,hardfacing tungsten carbide, Composite Ceramics etc. |
Process:clay sand casting,furan resin sand casting,shell mold casting,water-glass sand casting,lost foam casting(EPC or LFC) |
Application:Sicoma mixer wear parts,SANY mixer wear parts,ZOOMLION mixer wear parts,XCMG mixer wear parts,BHS mixer wear parts,Liebherr mixer wear parts,Eirich mixer wear parts,Teka mixer wear parts, etc. |
Blades, scrapers ,arm guards and wear liners are the most frequently replaced parts of a mixer. Our casting steel,hard-faced tungsten carbide wear parts will help reduce the amount of time (money) you spend on your mixer.
Chemical Data
Nodular Cast Iron QT500-7(for Arms-Spacers-Couplings)
Chemical Composition | ||||||
C | Si | Mn | S | P | Mg | RE |
3.6~3.8 | 2.5~2.9 | 0.6 | 0.025 | 0.08 | 0.03~0.05 | 0.03~0.05 |
Mechanical Properties | |||
Hardness(HBS) | Strength of Extension σb (MPa)
| Yield Strength σ0.2(MPa)
| Elongation δ(%)
|
170~230 | ≥500
| ≥320
| ≥7
|
High Chromium Cast Iron(for Blades-Scrapers-Liners)
Main Chemical Composition(%) | ||||||||
C | Si | Mn | Cr | S | P | Mo | Cu | Ni |
1.7~3.2 | 0.3~1.2 | 0.3~1.0 | 10-28 | ≤0.10 | ≤0.10 | ≤3.0 | ≤1.2 | ≤2.5 |
Mechanical Properties | |||
Hardness(HRC) | AK(J/cm ²) | Flexural Strength ak N.M/CM2 | Micro Structure |
58~64 | ≥2.5
| >700 | M+C |
S NO. | Part Name | JS500 | JS1000 | JS1500 | JS2000 | JS3000 | JS3000F | JS4500 |
1 | Central Blade | 8 | 8 | 8 | 8 | 12 | 12 | 12 |

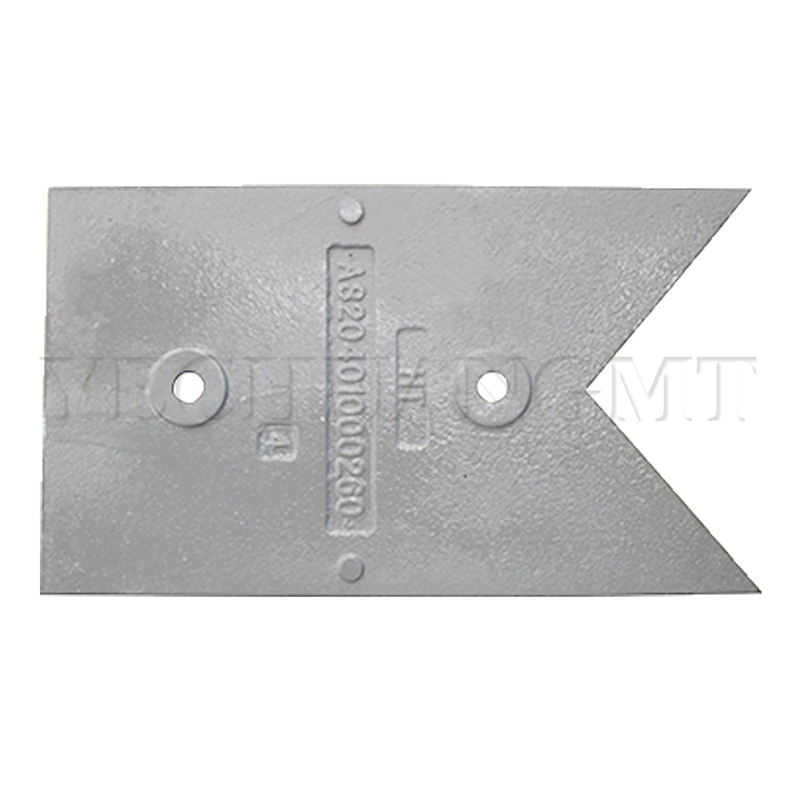

2 | Left Blade | 4 | 2 | 4 | 4 | 4 | 6 | 4 |
3 | Right Blade | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
S NO. | Part Name | JS500 | JS1000 | JS1500 | JS2000 | JS3000 | JS3000F | JS4500 |
1 | Wear Plate (Type’T’) | 12 | 16 | 16 | 16 | 16 | 16 | 16 |
2 | Wear Plate (Type’P’) | 18 | 24 | 40 | 32 | 48 | 48 | 48 |
